Toyota Supra MK5 EVO1 intake manifold with integrated intercooler for the B58.2 engine

The 3.0 Liter B58.2 turbo engine of the specified BMW/Toyota models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a water-cooled intercooler, which is integrated directly into the intake manifold.

The WAGNERTUNING intake manifold with integrated intercooler has got a new performance core which was specially developed for the high requirements and individual mounting position of the B58.2 engine and offers 128% more external core volume compared to the original intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal air flow. With the help of CFD simulations, the CNC-milled endtanks were designed for optimal air flow conditions. The result is an excellent cooling property with a minimal back pressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Wagner Tuning MK5 Supra A90 B58 EVO1 Intake Manifold w/ Integrated Intercooler

SKU: wgt200001175
$4,490.00Price
  • - significantly better cooling performance (up to 20°C cooler IAT)

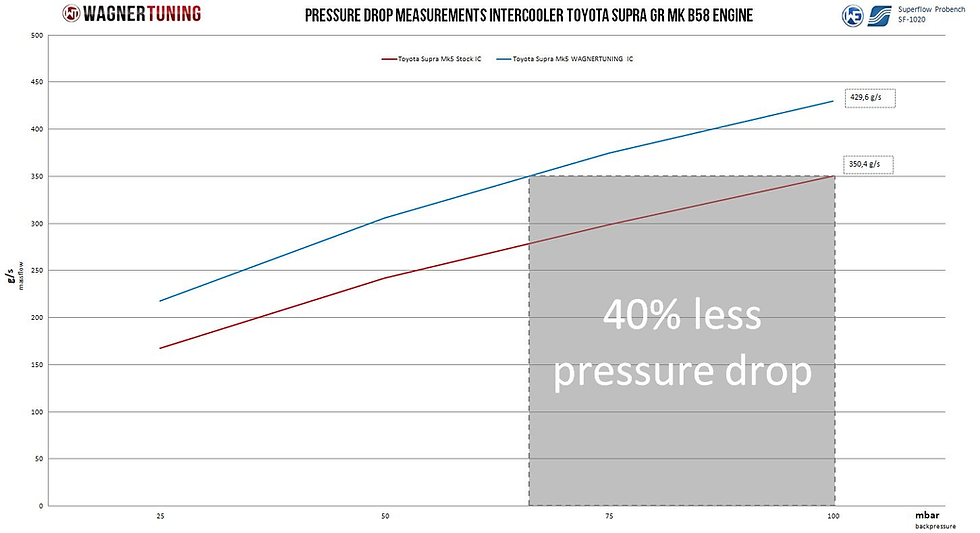

    - maximum mechanical discharge of the turbocharger (35% less back pressure)
    - more power and torque for your engine
    - 100% pressure resistance
    - 100% Plug and Play (no modifications)
    - preprocessed port fuel injection (fuel rail optionally available)
    - three 1/8 NPT ports for measuring additional parameters
    - six preprocessed NOS or WMI ports
    - this intake manifold is suitable for all performance levels
    - up to 4 years warranty
